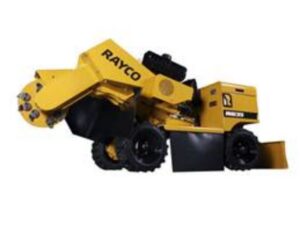

Rayco Hydraulic Stump Grinder (RG35)

Rayco’s next generation Super Jr is here! The new RG27 (27hp) and RG35 (35hp) Super Jr stump cutters bring revolutionary design changes to the ever popular Super Jr.

These machines are designed to give wider cutting dimensions, lower center of gravity, more traction and floatation, and better visibility while cutting. Their slewing ring pivot design eliminates the maintenance associated with pin style pivots and allows the machine to achieve maximum cutting depth across the entire width of the cut.

A swing-out control station provides visibility while cutting and swings in-line for travel through gates. The 35hp model RG35 also features two speed ground travel and a hydraulic backfill blade.

Optional dual wheels provide a wider stance for operation on slopes.

Specs

• Weight – RG27: 1,770 LB
• Weight – RG35: 1,830 LB
• Length: 114”
• Hood Height: 37”
• Maximum Height: 52”
• Width: 35”
• Width w/ Dual Wheels: 52.5”
• Engine – RG27: 27 HP Vanguard
• Engine – RG35: 35 HP Vanguard
• Fuel Type: Gasoline
• Ground Drive – RG27: Variable Speed Hydraulic
• Ground Drive – RG35: 2-Speed Hydraulic
• Fuel Tank: 6.5 Gal
• Super Tooth®: 18 Total
• Clutch: Electromagnetic with Wheel
• Brakes: Electromagnetic with Wheel Brakes
• Cutter Wheel: 17.25” x 1”
• Cutting Depth: 12”
• Cutting Height: 24.5”
• Cutting Width: 51”
