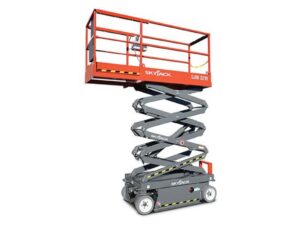

Skyjack 19′ Scissor Lift (SJIII 3219)

Consistent with Skyjack’s robust and reliable design features, the SJIII 3219 offers an easy to service, low maintenance design in a compact and versatile package. Featuring a 3’ roll out extension deck, a working height of 25’ and 25% gradeability, the SJIII 3219 boasts an industry leading capacity of 550 lbs. Equipped with variable speed front wheel hydraulic drive and 90° steering, it is capable of maneuvering in the smallest spaces.

The SJIII 3219 features durable steel swing-out component trays, providing unrestricted access for easy maintenance and service. Utilizing Skyjack’s standard color coded and numbered wiring system with analog based controls ensures the SJIII 3219 will maintain its industry leading life cycle value.

Key Features

  • Work Height: 25’
  • Raised Platform Height: 19’
  • Lowered Platform Height: 39”
  • Overall Width: 32”
  • Overall Length: 70”
  • Stowed Height (Rails Up): 78.5”
  • Stowed Height (Rails Down): Opt 64.5”
  • Platform Width (Inside Dimension): 26”
  • Platform Length (Inside Dimension): 64”
  • Extension Deck (Roll Out): 3’
  • Wheelbase: 55”
  • Ground Clearance (Stowed): 2.375”
  • Ground Clearance (Raised): 0.7”
  • Weight: 2,580 LBS
  • Lift Time (With Rated Load): 25 Sec
  • Drive Speed (Stowed): 2 MPH
  • Drive Speed (Raised): 0.7 MPH
  • Maximum Drive Height: Full Height
  • Capacity (Overall): 550 LBS
  • Maximum # of Persons: 2
